Model: CVS

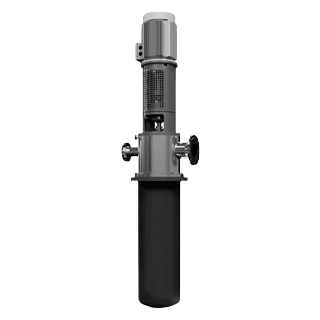

The CENTFOS-CVS API 610 VS6 pump is a vertical suspended, double-casing multistage centrifugal pump designed for ultra-high pressure and high-temperature services. Its barrel construction and multistage hydraulics ensure excellent rotor stability, strong pressure containment, and reliable operation in demanding applications such as refineries, petrochemical plants, offshore platforms, and power generation facilities.
The CENTFOS-CVS, API 610 VS6 pump is a vertical suspended, double-casing multistage centrifugal pump designed in accordance with the latest edition of API 610 for ultra-high pressure, high-temperature, and critical process services.
The VS6 configuration combines a vertical suspended shaft design with a double casing barrel construction and multistage hydraulic system. This design provides superior pressure containment, excellent rotor stability, and high mechanical strength for severe-duty applications requiring very high head and continuous operation.
CENTFOS-CVS, VS6 pumps are engineered to deliver reliable performance, structural integrity, and long service life in demanding industrial environments such as refineries, petrochemical plants, offshore platforms, and power generation facilities.
| Parameter | Range |
|---|---|
| Flow Rate | Up to 2,500 m³/hr |
| Head | Up to 1,800 m |
| Pressure | Up to 350 bar |
| Temperature | −46°C to +450°C |
| Speed | Up to 3,600 rpm |
| Setting Depth | Up to 20 m or more |
| Stages | Up to 16 |
| Seal Type | Mechanical Seal |
| Mounting | Vertical Mounting Plate |
| Component | Standard Material |
|---|---|
| Outer Casing | Forged Alloy Steel |
| Inner Casing | Carbon Steel / Alloy Steel |
| Impellers | SS316 / CF8M |
| Shaft | AISI 4140 / 410 SS |
| Wear Rings | Stainless Steel |
| Bushings | Bronze / Composite |
| Discharge Head | ASTM A216 WCB |
| Fasteners | High Tensile Alloy Steel |
