Model: CVP

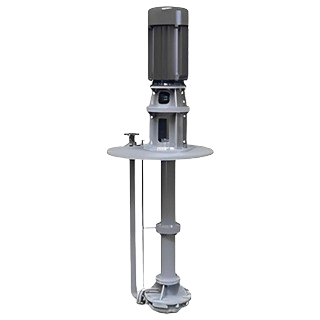

The CENTFOS-CVP API 610 VS4 pump is a vertical suspended, double-casing centrifugal pump designed for refinery, petrochemical, offshore, and industrial services. Its double casing improves pressure containment and safety, while the vertical shaft ensures stable operation. Built with advanced hydraulics and rugged construction, it delivers reliable performance in severe-duty industrial applications.
The CENTFOS-CVP, API 610 VS4 pump is a vertical suspended, double-casing centrifugal pump designed in accordance with the latest edition of API 610 for severe-duty refinery, petrochemical, offshore, and industrial process applications.
The VS4 configuration combines a vertical suspended shaft design with a double casing pressure containment system, providing superior mechanical strength, improved safety, and enhanced pressure resistance. This design is particularly suited for applications requiring high reliability, safe handling of hazardous fluids, and stable operation under extreme process conditions.
CENTFOS VS4 pumps integrate advanced hydraulic engineering, heavy-duty construction, and API-compliant design philosophy to ensure dependable performance in critical industrial services.
| Parameter | Range |
|---|---|
| Flow Rate | Up to 3,000 m³/hr |
| Head | Up to 300 m |
| Pressure | Up to 120 bar |
| Temperature | −46°C to +450°C |
| Speed | Up to 3,600 rpm |
| Setting Depth | Up to 15 m or more |
| Stages | Single or multistage |
| Seal Type | Mechanical seal |
| Mounting | Vertical mounting plate |
| Component | Standard Material |
|---|---|
| Outer Casing | Carbon steel |
| Inner Casing | Alloy steel |
| Impeller | SS316 / CF8M |
| Shaft | AISI 4140 / 410 SS |
| Wear Rings | Stainless steel |
| Bearing Bushings | Bronze / composite |
| Discharge Head | ASTM A216 WCB |
| Fasteners | Alloy steel |
