Model: CVN

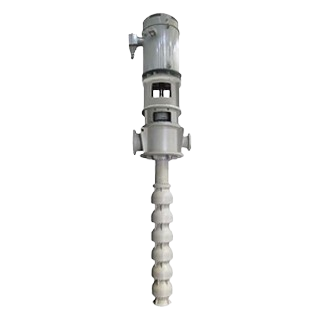

The CENTFOS-CVN API 610 VS3 pump is a vertical suspended, single-casing centrifugal pump designed for refinery, petrochemical, offshore, and industrial services. Its vertical shaft and inline discharge design provide compact installation and simplified piping. Engineered with optimized hydraulics and rugged construction, it ensures reliable performance in demanding industrial applications.
The CENTFOS-CVN, API 610 VS3 pump is a vertical suspended, single-casing centrifugal pump designed in accordance with the latest edition of API 610 for refinery, petrochemical, offshore, and industrial process services.
The VS3 configuration is characterized by a vertical suspended shaft with inline discharge arrangement, combining the benefits of vertical installation with simplified piping layout. This design is especially suitable for applications requiring compact installation, minimal floor space, and stable operation under demanding conditions.
CENTFOS VS3 pumps integrate optimized hydraulic design, rugged mechanical construction, and API-compliant engineering to ensure reliable performance in severe-duty industrial environments.
| Parameter | Range |
|---|---|
| Flow Rate | Up to 3,500 m³/hr |
| Head | Up to 220 m |
| Pressure | Up to 40 bar |
| Temperature | −46°C to +400°C |
| Speed | Up to 3,600 rpm |
| Setting Depth | Up to 12 m or more |
| Stages | Single or multistage |
| Impeller Type | Closed / Semi-open |
| Seal Type | Mechanical seal |
| Mounting | Vertical mounting plate |
| Component | Standard Material |
|---|---|
| Casing | Carbon steel |
| Impeller | SS316 / CF8M |
| Shaft | AISI 4140 / 410 SS |
| Wear Rings | Stainless steel |
| Bearing Bushings | Bronze / composite |
| Discharge Head | ASTM A216 WCB |
| Fasteners | Alloy steel |
