Model: CHD

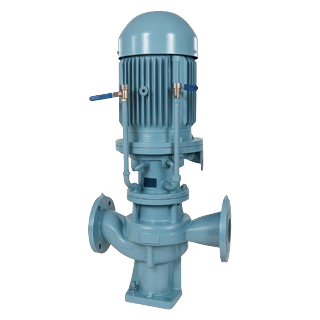

The CENTFOS-CPP API 610 OH4 pump is a vertical in-line, single-stage centrifugal pump designed for refinery, petrochemical, gas processing, and industrial services. Its close-coupled OH4 design mounts the impeller directly on the driver shaft, creating a compact pump with simplified installation, reduced alignment needs, and reliable performance in demanding process conditions.
The CENTFOS-CPP, API 610 OH4 pump is a vertical in-line, single-stage centrifugal pump designed according to the latest edition of API 610 for refinery, petrochemical, gas processing, and general industrial process services.
The OH4 configuration features a close-coupled design, where the impeller is mounted directly on the driver shaft, eliminating the need for a separate coupling and bearing housing. This results in a compact footprint, reduced alignment requirements, and simplified installation, making OH4 pumps ideal for space-restricted process units and skid-mounted systems.
CENTFOS OH4 pumps combine optimized hydraulic performance, rigid construction, and API-compliant engineering to ensure reliable operation in demanding service conditions.
| Parameter | Range |
|---|---|
| Flow Rate | Up to 1,000 m³/hr |
| Head | Up to 150 m |
| Pressure | Up to 25 bar |
| Temperature | −40°C to +300°C |
| Speed | 1,450 / 2,950 rpm |
| Flange Rating | ASME Class 150–600 |
| Nozzle Configuration | In-line |
| Mounting | Vertical |
| Seal Type | Single / Dual Mechanical |
| Seal Plans | API Plan 11 / 52 / 53 |
| Driver | Close-coupled electric motor |
| Component | Standard Material |
|---|---|
| Casing | ASTM A216 WCB |
| Impeller | SS316 / CF8M |
| Shaft | Motor shaft alloy steel |
| Wear Rings | Stainless steel |
| Sleeve | SS410 / SS316 |
| Seal Chamber | API compliant |
| Fasteners | Alloy steel |
| Support Structure | Fabricated steel |
