Model: CFDM

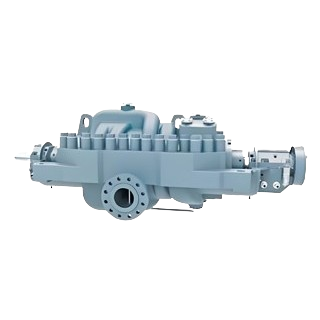

The CENTFOS-CFDM API 610 BB3 pump is a between-bearing, axially split, multistage centrifugal pump designed for high-pressure refinery, pipeline, and offshore services. Its robust BB3 configuration provides high head capability, low shaft deflection, and reliable hydraulic performance, ensuring durable and efficient operation in demanding continuous-duty industrial applications.
The CENTFOS-CFDM, API 610 BB3 pump is a between-bearing, axially split, multistage centrifugal pump designed in accordance with the latest edition of API 610 for high-pressure refinery, pipeline, offshore, and critical process applications.
The BB3 configuration is specifically engineered for services requiring high head, stable hydraulic performance, and exceptional mechanical reliability. Its horizontally split casing and between-bearing rotor construction provide excellent structural rigidity, low shaft deflection, and simplified maintenance access, making it ideal for severe-duty continuous operation.
CENTFOS BB3 pumps combine advanced hydraulic design, heavy-duty construction, and precision engineering to ensure dependable performance in demanding industrial environments.
| Parameter | Range |
|---|---|
| Flow Rate | Up to 4,000 m³/hr |
| Head | Up to 1,000 m |
| Pressure | Up to 200 bar |
| Temperature | −46°C to +450°C |
| Speed | 1,500 / 3,000 rpm |
| Stages | Up to 12 |
| Impeller Type | Single / Double suction first stage |
| Flange Rating | ASME Class 150–1500 |
| Seal Type | Single / Dual Mechanical |
| Seal Plans | API Plan 11 / 52 / 53 / 54 |
| Mounting | Horizontal Baseplate |
| Component | Standard Material |
|---|---|
| Casing | ASTM A216 WCB |
| Impellers | SS316 / CF8M |
| Shaft | AISI 4140 / 410 SS |
| Wear Rings | Stainless steel |
| Sleeve | SS410 / SS316 |
| Bearings | SKF / FAG / Equivalent |
| Baseplate | Fabricated steel (API type) |
| Fasteners | Alloy steel |
